JUNOS logical-router (cont'd)

2007-10-02

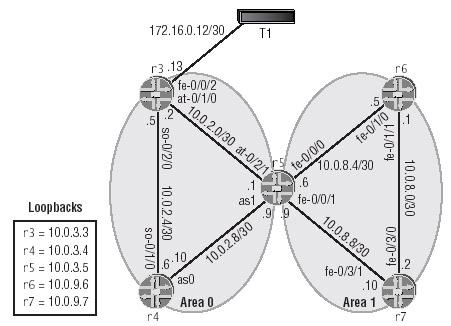

Multi Area OSPF

esigpri@SRLAB1# run show configuration logical-routers
r3 {
interfaces {
fe-1/3/0 {
unit 611 {
vlan-id 611;
family inet {
address 10.0.2.2/30;
}
}
}
fe-1/3/1 {
unit 616 {
vlan-id 616;
family inet {
address 10.0.2.5/30;
}
}
}
}
}
r4 {
interfaces {
fe-1/3/0 {
unit 616 {
vlan-id 616;
family inet {
address 10.0.2.6/30;
}
}
}
fe-1/3/1 {
unit 615 {
vlan-id 615;
family inet {
address 10.0.2.10/30;
}
}
}
}
}
r5 {
interfaces {
fe-1/3/0 {
unit 612 {
vlan-id 612;
family inet {
address 10.0.8.6/30;
}
}
unit 615 {
vlan-id 615;
family inet {
address 10.0.2.9/30;
}
}
}
fe-1/3/1 {
unit 611 {
vlan-id 611;
family inet {
address 10.0.2.1/30;
}
}
unit 614 {
vlan-id 614;
family inet {
address 10.0.8.9/30;
}
}
}
}
}
r6 {
interfaces {
fe-1/3/0 {
unit 613 {
vlan-id 613;
family inet {
address 10.0.8.1/30;
}
}
}
fe-1/3/1 {
unit 612 {
vlan-id 612;
family inet {
address 10.0.8.5/30;
}
}
}
}
}
r7 {
interfaces {
fe-1/3/0 {
unit 614 {
vlan-id 614;
family inet {
address 10.0.8.10/30;
}
}
}
fe-1/3/1 {
unit 613 {
vlan-id 613;
family inet {
address 10.0.8.2/30;
}
}
}
}
}

[edit]
esigpri@SRLAB1#
